Efficient Grouped Programming in R and/or C/C++ - with the collapse Package

collapse is a C/C++ based package for data transformation and statistical computing in R. Among other features it introduces an excellent and highly efficient architecture for grouped (and weighted) statistical programming in R. This post briefly explains this architecture and demonstrates:

  1. How to program highly efficient grouped statistical computations and data manipulations in R using the grouped functions supplied by collapse.

  2. How to use the grouping mechanism of collapse with custom C/C++ code to create further efficient grouped functions/operations in R.

Essentials: collapse Grouping Objects

collapse uses grouping objects as essential inputs for grouped computations. These objects are created from vectors or lists of vectors (i.e. data frames) using the function GRP():

library(collapse)
# A dataset supplied with collapse providing sectoral value added (VA) and employment (EMP)
head(GGDC10S, 3)
##   Country Regioncode             Region Variable Year AGR MIN MAN PU CON WRT TRA FIRE GOV OTH SUM
## 1     BWA        SSA Sub-saharan Africa       VA 1960  NA  NA  NA NA  NA  NA  NA   NA  NA  NA  NA
## 2     BWA        SSA Sub-saharan Africa       VA 1961  NA  NA  NA NA  NA  NA  NA   NA  NA  NA  NA
## 3     BWA        SSA Sub-saharan Africa       VA 1962  NA  NA  NA NA  NA  NA  NA   NA  NA  NA  NA
fdim(GGDC10S)
## [1] 5027   16

# Creating a grouping object (by default return.order = FALSE as the ordering is typically not needed)
g <- GRP(GGDC10S, c("Country", "Variable"), return.order = TRUE)
# Printing it
print(g)
## collapse grouping object of length 5027 with 85 ordered groups
##
## Call: GRP.default(X = GGDC10S, by = c("Country", "Variable"), return.order = TRUE), X is unordered
##
## Distribution of group sizes:
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##    4.00   53.00   62.00   59.14   63.00   65.00
##
## Groups with sizes:
## ARG.EMP  ARG.VA BOL.EMP  BOL.VA BRA.EMP  BRA.VA
##      62      62      61      62      62      62
##   ---
## VEN.EMP  VEN.VA ZAF.EMP  ZAF.VA ZMB.EMP  ZMB.VA
##      62      63      52      52      52      52

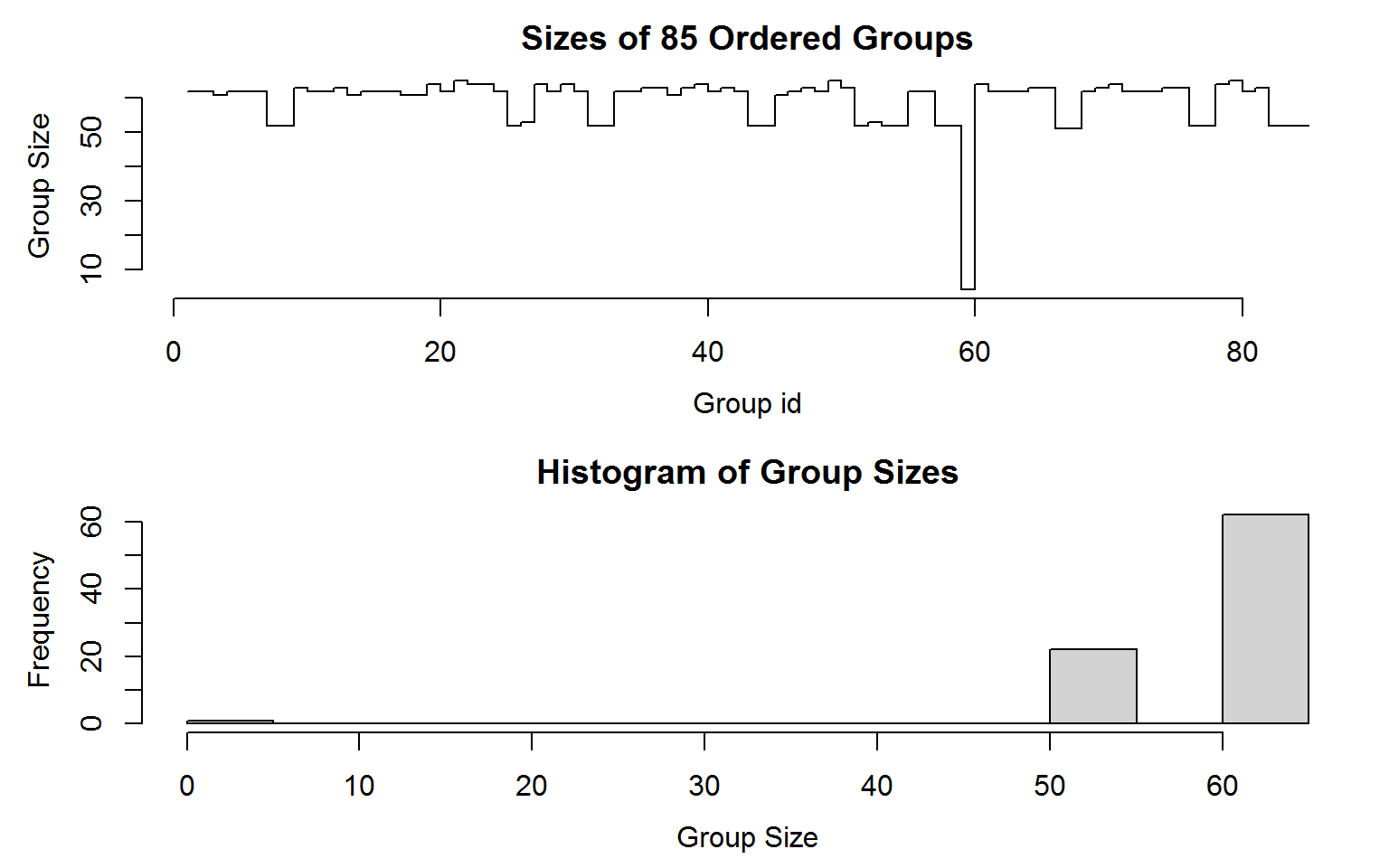

# Plotting it
plot(g)

Grouping is done very efficiently using radix-based ordering in C (thanks to data.table source code). The structure of this object is shown below:

str(g)
## List of 8
##  $ N.groups   : int 85
##  $ group.id   : int [1:5027] 8 8 8 8 8 8 8 8 8 8 ...
##  $ group.sizes: int [1:85] 62 62 61 62 62 62 52 52 63 62 ...
##  $ groups     :'data.frame': 85 obs. of  2 variables:
##   ..$ Country : chr [1:85] "ARG" "ARG" "BOL" "BOL" ...
##   .. ..- attr(*, "label")= chr "Country"
##   .. ..- attr(*, "format.stata")= chr "%9s"
##   ..$ Variable: chr [1:85] "EMP" "VA" "EMP" "VA" ...
##   .. ..- attr(*, "label")= chr "Variable"
##   .. ..- attr(*, "format.stata")= chr "%9s"
##  $ group.vars : chr [1:2] "Country" "Variable"
##  $ ordered    : Named logi [1:2] TRUE FALSE
##   ..- attr(*, "names")= chr [1:2] "GRP.sort" "initially.ordered"
##  $ order      : int [1:5027] 2583 2584 2585 2586 2587 2588 2589 2590 2591 2592 ...
##   ..- attr(*, "starts")= int [1:85] 1 63 125 186 248 310 372 424 476 539 ...
##   ..- attr(*, "maxgrpn")= int 65
##   ..- attr(*, "sorted")= logi FALSE
##  $ call       : language GRP.default(X = GGDC10S, by = c("Country", "Variable"), return.order = TRUE)
##  - attr(*, "class")= chr "GRP"

The first three slots of this object provide the number of unique groups, a group-id matching each value/row to a group1, and a vector of group-sizes. The fourth slot provides the unique groups (default return.groups = TRUE), followed by the names of the grouping variables, a logical vector showing whether the grouping is ordered (default sort = TRUE), and the ordering vector which can be used to sort the data alphabetically according to the grouping variables (default return.order = FALSE).

Grouped Programming in R

collapse provides a whole ensemble of C++ based generic statistical functions that can use these ‘GRP’ objects to internally perform (column-wise) grouped (and weighted) computations on vectors, matrices and data frames in R. Their names are contained in the global macro .FAST_FUN:

.FAST_FUN
##  [1] "fmean"      "fmedian"    "fmode"      "fsum"       "fprod"      "fsd"        "fvar"
##  [8] "fmin"       "fmax"       "fnth"       "ffirst"     "flast"      "fNobs"      "fNdistinct"
## [15] "fscale"     "fbetween"   "fwithin"    "fHDbetween" "fHDwithin"  "flag"       "fdiff"
## [22] "fgrowth"

Additional functions supporting grouping objects are TRA (grouped replacing and sweeping out statistics), BY (split-apply-combine computing) and collap (advanced data aggregation with multiple functions).

To provide a brief example, we can compute a grouped mean of the above data using:

head(fmean(GGDC10S[6:16], g))
##                AGR         MIN         MAN           PU        CON         WRT        TRA
## ARG.EMP  1419.8013    52.08903   1931.7602   101.720936   742.4044   1982.1775   648.5119
## ARG.VA  14951.2918  6454.94152  36346.5456  2722.762554  9426.0033  26633.1292 14404.6626
## BOL.EMP   964.2103    56.03295    235.0332     5.346433   122.7827    281.5164   115.4728
## BOL.VA   3299.7182  2846.83763   3458.2904   664.289574   729.0152   2757.9795  2727.4414
## BRA.EMP 17191.3529   206.02389   6991.3710   364.573404  3524.7384   8509.4612  2054.3731
## BRA.VA  76870.1456 30916.64606 223330.4487 43549.277879 70211.4219 178357.8685 89880.9743
##                 FIRE        GOV        OTH         SUM
## ARG.EMP    627.79291   2043.471   992.4475   10542.177
## ARG.VA    8547.37278  25390.774  7656.3565  152533.839
## BOL.EMP     44.56442         NA   395.5650    2220.524
## BOL.VA    1752.06208         NA  4383.5425   22619.177
## BRA.EMP   4413.54448   5307.280  5710.2665   54272.985
## BRA.VA  183027.46189 249135.452 55282.9748 1200562.671

By default (use.g.names = TRUE), group names are added as names (vectors) or row-names (matrices and data frames) to the result. For data frames we can also add the grouping columns again using2:

head(add_vars(g[["groups"]], fmean(get_vars(GGDC10S, 6:16), g, use.g.names = FALSE)))
##   Country Variable        AGR         MIN         MAN           PU        CON         WRT        TRA
## 1     ARG      EMP  1419.8013    52.08903   1931.7602   101.720936   742.4044   1982.1775   648.5119
## 2     ARG       VA 14951.2918  6454.94152  36346.5456  2722.762554  9426.0033  26633.1292 14404.6626
## 3     BOL      EMP   964.2103    56.03295    235.0332     5.346433   122.7827    281.5164   115.4728
## 4     BOL       VA  3299.7182  2846.83763   3458.2904   664.289574   729.0152   2757.9795  2727.4414
## 5     BRA      EMP 17191.3529   206.02389   6991.3710   364.573404  3524.7384   8509.4612  2054.3731
## 6     BRA       VA 76870.1456 30916.64606 223330.4487 43549.277879 70211.4219 178357.8685 89880.9743
##           FIRE        GOV        OTH         SUM
## 1    627.79291   2043.471   992.4475   10542.177
## 2   8547.37278  25390.774  7656.3565  152533.839
## 3     44.56442         NA   395.5650    2220.524
## 4   1752.06208         NA  4383.5425   22619.177
## 5   4413.54448   5307.280  5710.2665   54272.985
## 6 183027.46189 249135.452 55282.9748 1200562.671

The execution cost of all of these functions is extremely small, so the performance is essentially limited by C++, not by R.

library(microbenchmark)
microbenchmark(call = add_vars(g[["groups"]], fmean(get_vars(GGDC10S, 6:16), g, use.g.names = FALSE)))
## Unit: microseconds
##  expr     min      lq     mean  median       uq      max neval
##  call 336.917 368.602 538.4524 443.125 596.6345 1859.071   100

We can use these functions to write very efficient grouped code in R. This shows a simple application in panel data econometrics comparing a pooled OLS to a group means, a between and a within estimator computed on the demeaned data3:

Panel_Ests <- function(formula, data, pids, weights = NULL, ...) {
  # Get variables as character string, first variable is dependent variable
  vars <- all.vars(formula)
  # na_omit is a fast replacement for na.omit
  data_cc <- na_omit(get_vars(data, c(vars, pids, weights)))
  # Create grouped object (pids should be a character vector)
  g <- GRP(data_cc, pids, return.groups = FALSE, call = FALSE)
  # Getting weights from data (weights should be character string)
  if(length(weights)) weights <- .subset2(data_cc, weights)
  # qM is a faster as.matrix
  data_cc <- qM(get_vars(data_cc, vars))
  # Computing group means
  mean_data_cc <- fmean(data_cc, g, weights, use.g.names = FALSE)
  # This computes regression coefficients, dots options regard different fitting methods
  reg <- function(x, w = weights, ...)
    drop(flm(x[, 1L], x[, -1L, drop = FALSE], w, add.icpt = TRUE, ...))

  qM(list(Pooled = reg(data_cc),
          Means = reg(mean_data_cc, w = if(length(weights)) fsum(weights, g) else NULL),
          # This replaces data values with the group-mean -> between-group estimator
          Between = reg(TRA(data_cc, mean_data_cc, "replace_fill", g)),
          # This subtracts the group-means -> within-group estimator
          Within = reg(TRA(data_cc, mean_data_cc, "-", g))))
}

library(magrittr)  # Pipe operators

# Calculating Value Added Percentage Shares (data is in local currency)
VA_shares <- fsubset(GGDC10S, Variable == "VA") %>% ftransformv(6:16, `*`, 100/SUM)

# Value Added data (regressing Government on Agriculture, Manufactoring and Finance & Real Estate)
Panel_Ests(GOV ~ AGR + MAN + FIRE, VA_shares, "Country") %>% round(4)
##              Pooled   Means Between  Within
## (Intercept) 25.8818 26.6702 26.5828  0.0000
## AGR         -0.3425 -0.3962 -0.3749 -0.2124
## MAN         -0.2339 -0.1744 -0.2215 -0.2680
## FIRE        -0.2083 -0.3337 -0.2572 -0.0742

# Employment data
fsubset(GGDC10S, Variable == "EMP") %>% ftransformv(6:16, `*`, 100/SUM) %>%
  Panel_Ests(formula = GOV ~ AGR + MAN + FIRE, "Country") %>% round(4)
##              Pooled   Means Between  Within
## (Intercept) 33.2047 34.6626 35.4332  0.0000
## AGR         -0.3543 -0.3767 -0.3873 -0.2762
## MAN         -0.4444 -0.4595 -0.4790 -0.4912
## FIRE        -0.1721 -0.3097 -0.2892 -0.1087

A benchmark below shows that this series of estimators is executed very efficiently and scales nicely to large data (quite a bit faster than using plm to do it).

VA_shares$weights <- abs(rnorm(fnrow(VA_shares))) # Random weights

# Benchmark on VA data
microbenchmark(lm.fit = Panel_Ests(SUM ~ AGR + MIN + MAN, VA_shares, "Country"),
               chol = Panel_Ests(SUM ~ AGR + MIN + MAN, VA_shares, "Country", method = "chol"),
               lm.fit.w = Panel_Ests(SUM ~ AGR + MIN + MAN, VA_shares, "Country", "weights"),
               chol.w = Panel_Ests(SUM ~ AGR + MIN + MAN, VA_shares, "Country", "weights", method = "chol"))
## Unit: milliseconds
##      expr      min       lq     mean   median       uq       max neval cld
##    lm.fit 1.432458 1.850815 2.547426 2.134406 2.711181  8.563059   100   a
##      chol 1.413715 1.934932 2.543539 2.170775 2.621708 10.759493   100   a
##  lm.fit.w 1.652458 2.256009 2.910913 2.632642 3.082237  8.343505   100   a
##    chol.w 1.707792 1.992276 3.023913 2.479579 3.085361 13.799782   100   a

There are lots and lots of other applications that can be devised in R using the .FAST_FUN and efficient programming with grouping objects.

Creating Grouped Functions in C/C++

It is also possible to just use ‘GRP’ objects as input to new grouped functions written in C or C++. Below I use Rcpp to create a generic grouped anyNA function for vectors:

// [[Rcpp::plugins(cpp11)]]
#include <Rcpp.h>
using namespace Rcpp;

// Inputs:
// x - A vector of any type
// ng - The number of groups - supplied by GRP() in R
// g - An integer grouping vector - supplied by GRP() in R

// Output: A plain logical vector of size ng

template <int RTYPE>
LogicalVector ganyNACppImpl(Vector<RTYPE> x, int ng, IntegerVector g) {
  int l = x.size();
  if(l != g.size()) stop("length(x) must match length(g)");
  LogicalVector out(ng); // Initializes as false

  if(RTYPE == REALSXP) { // Numeric vector: all logical operations on NA/NaN evaluate to false, except != which is true.
    for(int i = 0; i < l; ++i) {
      if(x[i] != x[i] && !out[g[i]-1]) out[g[i]-1] = true;
    }
  } else { // other vectors
    for(int i = 0; i < l; ++i) {
      if(x[i] == Vector<RTYPE>::get_na() && !out[g[i]-1]) out[g[i]-1] = true;
    }
  }

  return out;
}

// Disabling complex and non-atomic vector types
template <>
LogicalVector ganyNACppImpl(Vector<CPLXSXP> x, int ng, IntegerVector) {
  stop("Not supported SEXP type!");
}

template <>
LogicalVector ganyNACppImpl(Vector<VECSXP> x, int ng, IntegerVector) {
  stop("Not supported SEXP type!");
}

template <>
LogicalVector ganyNACppImpl(Vector<RAWSXP> x, int ng, IntegerVector) {
  stop("Not supported SEXP type!");
}

template <>
LogicalVector ganyNACppImpl(Vector<EXPRSXP> x, int ng, IntegerVector) {
  stop("Not supported SEXP type!");
}

// [[Rcpp::export]]
LogicalVector ganyNACpp(const SEXP& x, int ng = 0, const IntegerVector& g = 0){
  RCPP_RETURN_VECTOR(ganyNACppImpl, x, ng, g);
}

On the R side things are then pretty simple:

library(Rcpp)
sourceCpp("ganyNA.cpp")

ganyNA <- function(x, g, use.g.names = TRUE, ...) {
  # Option group.sizes = FALSE prevents tabulation of levels if a factor is passed
  g <- GRP(g, return.groups = use.g.names, group.sizes = FALSE, call = FALSE, ...)
  res <- ganyNACpp(x, g[[1L]], g[[2L]])
  # GRPnames creates unique group names. For vectors they need not be character typed.
  if(use.g.names) names(res) <- GRPnames(g, force.char = FALSE)
  res
}

Regarding the grouping step, there are actually different options to set this up: GRP() is a S3 generic function with a default method applying to atomic vectors and lists / data frames, but also a ‘factor’ method converting factors to ‘GRP’ objects. Above I have used the generic GRP function with the option group.sizes = FALSE, so factors are efficiently converted without tabulating the levels. This provides more efficiency if a factor is passed to g. Since collapse 1.4.0, the factor method additionally supports efficient dropping of unused factor levels through setting an argument drop = TRUE, which internally calls a C++ function function fdroplevels on the factor. By default drop = FALSE and this default is kept here. The cost of dropping levels on a large factor can be seen in the benchmark below.

While the generic version of GRP() offers a lot of flexibility and faster methods for grouping different objects (for example you can also apply GRP() on a grouped tibble to get at ‘GRP’ object from the attached ‘groups’ attribute), a viable alternative is to just use the default method g <- GRP.default(g, return.groups = use.g.names, call = FALSE). This will get rid of unused factor levels, but using factors for grouping is just as efficient as any other vector.

GGDC10S %$% ganyNA(SUM, list(Country, Variable)) %>% head
## ARG.EMP  ARG.VA BOL.EMP  BOL.VA BRA.EMP  BRA.VA
##   FALSE   FALSE   FALSE    TRUE   FALSE    TRUE

# 10 million obs and 1 million groups, 1% of data missing
x <- na_insert(rnorm(1e7), prop = 0.01)
g <- sample.int(1e6, 1e7, TRUE)
system.time(ganyNA(x, g))
##    user  system elapsed
##    0.72    0.05    0.78
system.time(ganyNA(x, g, use.g.names = FALSE))
##    user  system elapsed
##    0.55    0.05    0.59

# Using a factor grouping variable: more efficient
f <- qF(g, na.exclude = FALSE) # Efficiently creating a factor (qF is faster as.factor)
system.time(ganyNA(x, f))
##    user  system elapsed
##    0.04    0.02    0.04
system.time(ganyNA(x, f, drop = TRUE)) # This also checks for unused levels and drops them (if found)
##    user  system elapsed
##    0.14    0.00    0.14
# Note: use.g.names = FALSE does not give a performance improvement with factors because unique factor levels are already computed

# We can also efficiently pass a 'GRP' object: both GRP.GRP and GRP.default simply return it.
g <- GRP(g)
system.time(ganyNA(x, g))
##    user  system elapsed
##    0.02    0.00    0.01
system.time(ganyNA(x, g, use.g.names = FALSE))
##    user  system elapsed
##    0.03    0.00    0.03

We could additionally add a TRA argument and then internally call the TRA() function to allow for replacing and sweeping out statistics, but this does not make much sense here.


  1. By default (sort = TRUE) the grouping is ordered, which is equivalent to data.table grouping with keyby.↩︎

  2. add_vars is a faster alternative to cbind and get_vars is a faster alternative to [.data.frame for subsetting columns.↩︎

  3. A random effects estimator could easily be added, see the example here.↩︎
